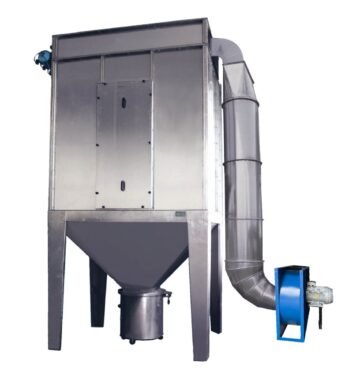

Filter unit ADAMIK FP 7112 PEA 4 kW PK

The highly efficient vacuum filter unit FP 7112 PEA PK equipped with cartridge filters is designed to capture the finest dust particles. The filter cartridges are cleaned fully automatically using compressed air pulses.

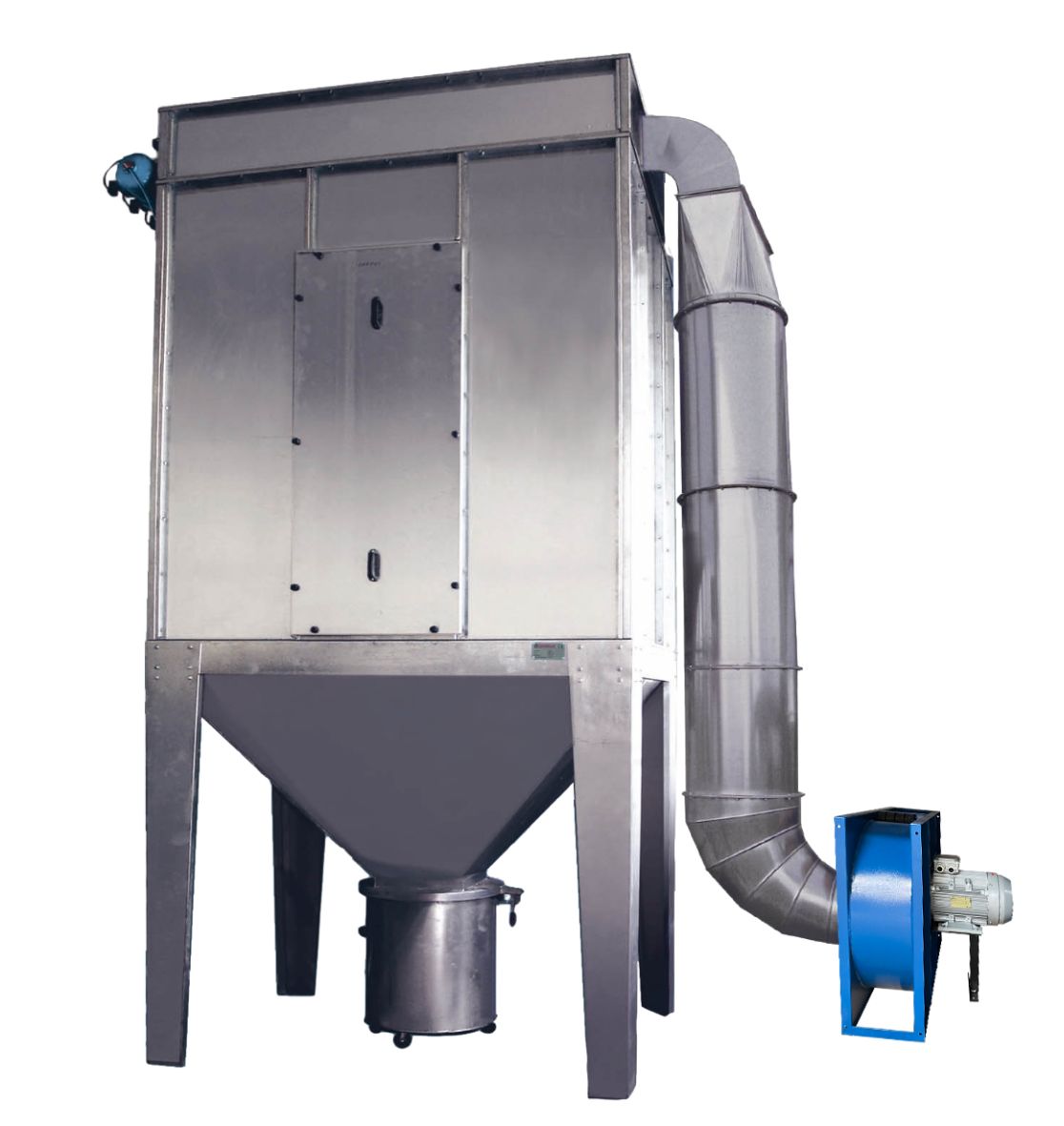

The unit’s structure is made of solid galvanized sheet metal and is divided into three main sections:

• Upper part: Contains pneumatic components for automatic cleaning.
• Middle part: Equipped with highly efficient cartridge filters made of non-woven polyester fabric.
• Lower part: Made up of a hopper that directs the captured dust into a metal collection container.

Key features and specifications

• High filtration efficiency: Reaches up to 99% for particles as small as 1 µm.
• Automatic regeneration: Solenoid valves are controlled by a cyclic controller.
• Robust design: Designed for outdoor installation.
• Low operating costs: The new generation freestanding fan achieves an excellent ratio between extraction capacity and underpressure while maintaining low noise and low energy consumption. Underpressure is an often underestimated but critical parameter. The model range has sufficient power to provide high-quality material extraction even from machines more than 10 meters away from the fan.

Area of ​​application

Ideal for extracting fine dust in all industrial sectors, especially for:

• Extraction from grinders and when sanding paint/varnishes
• Paint shops and paint spraying
• Plasma and laser cutting and welding (requires pre-dosing of special protective powder before starting operation)

Operating principle

The extraction unit operates in underpressure mode:

1. The polluted air enters the vacuum chamber, where heavier dust particles fall directly into the hopper and collection container due to gravity.
2. The air then passes through the cartridge filters from the outside in, trapping fine dust on the outer surface of the cartridges.
3. The purified air flows further out of the unit.
4. Cartridge filters are automatically regenerated during operation by the return of compressed air (from the inside out), controlled by a cyclic regulator.

The unit is intended for outdoor use. When installed outdoors, all joints must be properly sealed with silicone to prevent water ingress.

To ensure maximum efficiency and compliance with your requirements, the electrical switchboard is not part of the standard assembly. We always tailor it to the specific operation and connection of your machines.

Optional accessories and modifications

• Rotary valve
• ATEX version for explosive environments (on request at extra cost)

Why solve the extraction with us?

• Individual project: Capacity calculation exactly for your machine park.
• Energy savings: Thanks to automation and efficient piping, you don’t use more energy than necessary.
• Professional installation: We guarantee the functionality of the entire system.

Do you have specific requirements for the workshop layout? We will be happy to prepare a tailor-made solution for you.

OPTIONAL ACCESSORIES AND SERVICES

In addition to the filter unit itself, we provide complete components and services necessary for maximum efficiency of your extraction system.

• Piping system – High-quality piping is the basis for proper extraction function. We dimension the piping individually based on the total number of machines and their maximum operating speed. We use smooth piping and elements designed to minimize flow losses and ensure stable extraction performance for each machine.

• Switchboards and automatic start – We supply electrical switchboards in several standard variants for individual machines, or we manufacture them tailored to your operation. We provide advanced functions such as automatic start of extraction when the machine is turned on or intelligent control of pneumatic flaps.

• Manual shutters – An affordable solution for optimizing performance. They allow you to manually shut off branches on machines that you are not currently using, thus concentrating the extraction power where it is currently needed.
• Pneumatic shutters – For maximum comfort and work efficiency, we offer pneumatically controlled shutters. These usually operate fully automatically – they open and close simultaneously with the start of a specific extracted machine and filter unit.
• Turnkey design and installation – Take advantage of our experience from project to launch. If you decide on a turnkey implementation, our professional installation team will ensure complete installation, precise connection of all machines and subsequent commissioning of the entire system directly in your workshop.
